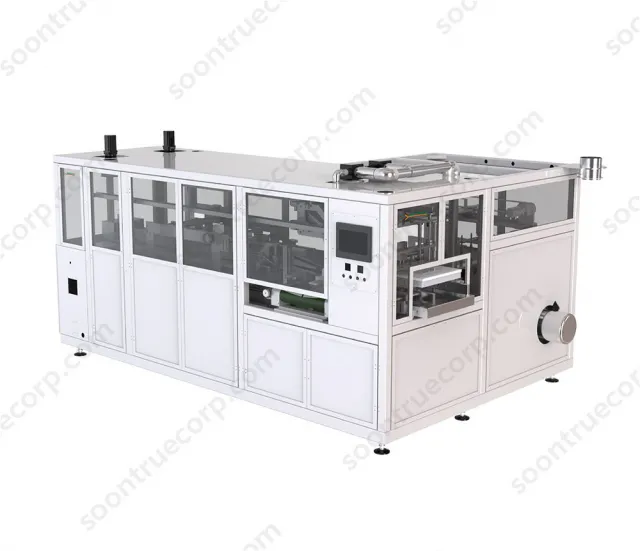

TD300ANH Facial Tissue Bundle Packing Machine

Machine model	TD300ANH facial tissue bundle packing machine
Packing speed	15-35packs/min
Max bundle bag length	550mm
Finished bundle bag width	120-420mm
Finished bundle bag height	90～105mm
Bundle bag max length	640mm
Bundle bag packing type	3,4,5,6,8,10,12bags/bundle
Bundle bag material	Pre-made M bag with air outlet hole(diameter 5-6mm),the thickness is 40-60μm, opp, cpp, pe double side sealing film.
Pre-made bag qty	2 bag base for changing and each one can hold 300-400 pcs
Machine out-dimension	4900×2900×1920 mm
Machine power supply	380V±10%，50Hz±5%, 3phase, 4 wires and PE wire
Air supply	0.6～0.7Mpa ,330L/min
Machine weight	About 2500kg
Noise	<80dB
Total power	15Kw
Bag edge cut off	Length 25-30mm

The TD300ANH facial tissue bundle packing machine is engineered for manufacturers who need to group-pack 2, 4, 6, 8 or 10 packs of facial tissue into a single bundle bag at high speed and with consistent sealing quality. As a fully automatic facial tissue wrapping machine, it is built to handle film-packed facial tissue products coming directly off your production line, turning single packs into retail-ready, shelf-ready bundles without manual intervention. Whether you are scaling up an existing facial tissue paper production line or adding a dedicated bundling stage, the TD300ANH delivers the stability and precision that high-volume tissue converters require.

How It Works？

The TD300ANH is a pre-made bag facial tissue packing machine, meaning it feeds, opens, fills and seals pre-formed bags rather than forming bags from flat film — a method that gives far more stable bag geometry and cleaner presentation than form-fill-seal systems, especially for taller or irregular bundle shapes.

- Dual pre-made bag magazines (each holding 300–400 bags) allow continuous changeover without stopping the line

- Bags are pre-fitted with an air-outlet hole (5–6mm) to release trapped air during compression, preventing bag distortion

- A motion-controller-based system with seven sets of servo power drives coordinates bag picking, opening, product insertion and sealing with precise, repeatable positioning

- An intelligent human-machine interface lets operators switch between single-row and double-row packing specifications quickly, without manual retooling

- Bag material compatibility spans OPP, CPP and PE double-side sealing films (40–60μm thickness), giving flexibility across different regional packaging standards

This combination is what makes the TD300ANH a genuinely high speed tissue packaging machine rather than just a fast one — the servo-driven positioning keeps output stable at 15–35 packs/min even as bundle configurations change.

Applications

The TD300ANH facial tissue bagging machine is designed to bundle-pack a range of soft-pumping and film-wrapped tissue products, including:

- Facial tissue (film-packed single packs, grouped into 3/4/5/6/8/10/12-bag bundles)

- V-fold and N/Z-fold hand towels

- Square tissue and pocket tissue packs

- Cotton tissue and napkin bundles

It connects seamlessly downstream of a single-pack facial tissue wrapping machine or facial tissue paper production line, making it a natural fit for manufacturers looking to complete a full facial tissue packaging/wrapping machine workflow — from single pack to shelf-ready bundle — on one integrated line.

Why Choose Soontrue？

As a facial tissue bundle packing machine manufacturer with over 30 years in the tissue converting and packaging industry, Soontrue Group has been developing packing machines and tissue paper converting lines since 1993. Today, Soontrue operates four manufacturing bases — in Shanghai, Foshan, Chengdu and Zhejiang — across a combined plant area of 166,000 square meters, giving us the manufacturing depth to support both single-machine orders and full production line projects.

Our engineering approach is client-oriented and technology-driven, with quality treated as a non-negotiable standard at every stage of production. This is reflected directly in the TD300ANH: a low center-of-gravity frame for operating stability, a unique automatic material sorting mechanism for fast format switching, and a compact footprint that connects easily into existing lines with minimal civil work.

If you're evaluating a facial tissue bundle packing machine price and specification against multiple suppliers, we're glad to walk through your target bundle configuration, output requirements, and packaging film specifications to confirm the right setup — and to arrange a factory acceptance test or live video verification before shipment.

FAQ

Q: What bag type does the TD300ANH facial tissue bundle packing machine use?

A: It uses pre-made bags with an air-outlet hole, in OPP, CPP or PE double-side sealing film (40–60μm), fed from two interchangeable bag magazines for continuous operation.

Q: Can the TD300ANH switch between different bundle configurations?

A: Yes. The servo-driven material sorting mechanism allows fast switching between single-row and double-row packing formats, supporting 3/4/5/6/8/10/12-bag bundle configurations without manual retooling.

Q: Can this facial tissue wrapping machine connect to an existing production line?

A: Yes, the TD300ANH is designed to connect directly downstream of a single-pack facial tissue wrapping machine or full facial tissue paper production line for a continuous single-pack-to-bundle workflow.
